U Coil, 316 Stainless and Titanium Immersion Coil

Process Technology Immersion Coils and Inline Exchangers

Designed for the high demands of corrosive chemical heating or cooling.

Features

• Heavy wall, 20-gauge metal tubing available in steel, 316 stainless steel and titanium..
• Durable, low profile design for tanks with limited space.
• Every inch of coil surface is active exchange area.

Specifications

• 100 PSI working pressure (steam or water).

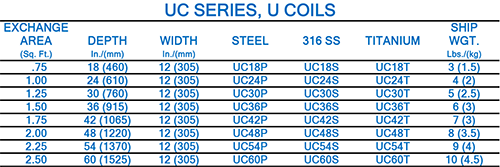

• 75 square foot to 2.5 square foot of exchange area standard.

Options Available (consult factory)

• Custom configuration including bottom style Coils.
• Heavier gauge tubing.
• Zirconium, Hastelloy C® and other alloys available.
• Fluoropolymer coatings for protection at solution/atmospheric interface.

Downloads

U Coil, 316 Stainless and Titanium Immersion Coil
