Serpentine Series, 316 Stainless and Titanium Immersion Coil

Process Technology Immersion Coils and Inline Exchangers

Designed for the high demands of corrosive chemical heating or cooling.

Features

  • Heavy wall, 20-gauge metal tubing available in steel, 316 stainless steel and titanium..
  • Durable, low profile design for tanks with limited space (except zirconium material).
  • Every inch of coil surface is active exchange area.

Specifications

  • 100 PSI working pressure (steam or water).

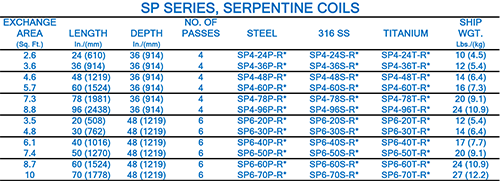

  • 6 square foot to 10.0 square foot of exchange area standard for 4-pass and 6-pass designs.

Options Available (consult factory)

  • Custom configuration including bottom style Coils.
  • Heavier gauge tubing.
  • Zirconium, Hastelloy C® and other alloys available.
  • Fluoropolymer coatings for protection at solution/atmospheric interface.
