Grid Series, 316 Stainless and Titanium Immersion Coil

Process Technology Immersion Coils and Inline Exchangers

Designed for the high demands of corrosive chemical heating or cooling.

Features

• Heavy wall, 20-gauge metal tubing available in steel, 316 stainless steel and titanium.
• Durable, low profile design.
• Every inch of coil surface is active exchange area.

Specifications

• 100 PSI working pressure (steam or water).

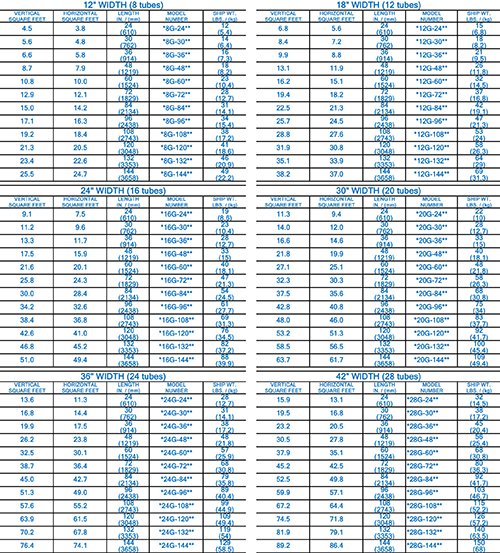

• 6 square foot to 89.9 square foot of exchange area.

NOTE: Inlet and outlet connections must be sized to adequately handle water and steam volume requirements. Generally, larger inlet sizes are needed for grid coils larger than 33 sq. ft. (for steam) and 25 sq. ft. (for water).

Options Available (consult factory)

• Custom configuration including bottom style Coils.
• Heavier gauge tubing.
• Mounting hangers.
• Zirconium, Hastelloy C® and other alloys available.
• Fluoropolymer coatings for protection at solution/atmospheric interface.

Downloads

Grid Series, 316 Stainless and Titanium Immersion Coil
