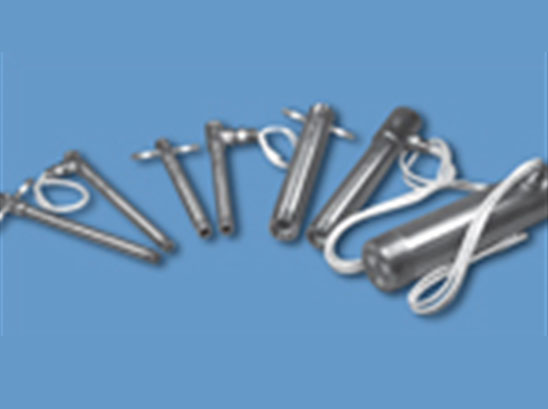

Specialty Inline Heaters

Specifications:

• Air temperature controllable to 1400°F (760°C)
• For applications requiring high pressure air
• Both ends threaded 3/8", 1/2", 1-1/4", and 2-1/2" NPT
• 304 stainless steel housing
• Recommended minimum airfl ow 60 SCFH

Style A:

• Should be used whenever an absolute leak-proof system up to 150 psi (10 bar) is required
• Two high-temperature power feedthroughs
• Maximum inlet temperature 900°F (482°C)

Style B:

• Maximum air pressure 150 psi (10 bar), but will have slight air leakage through power wire strands
• 12" (305mm) fl exible power wires
• Maximum inlet temperature 200°F (93°C)
• RoHS compliant
