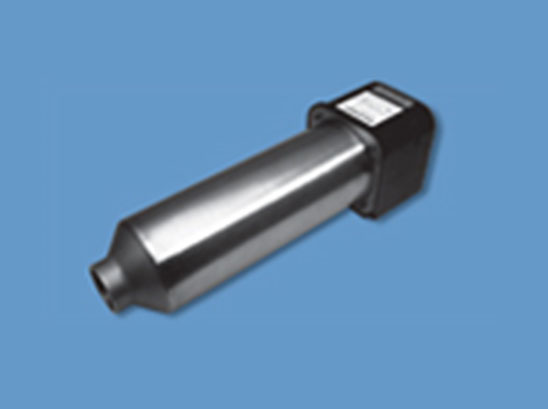

SUREHEAT® MAX

Specifications:

• Air temperature controllable to 1400°F (760°C)
• Power ratings 6.0kW - 36.0kW 240/380/480V - 1φ /3φ
• Two internal Type K thermocouple sensors for control and safety:
• S1 measures inlet temperature
• S2 measures exit temperature
• Rapid heat-up and cool-down
• Maximum air pressure 60 psi (4 bar)
• Maximum inlet temperature 200°F (93°C)
• Recommended minimum airfl ow 12 SCFM
• Use SUREHEAT MAX Control (purchased separately) for easy installation
• RoHS compliant
