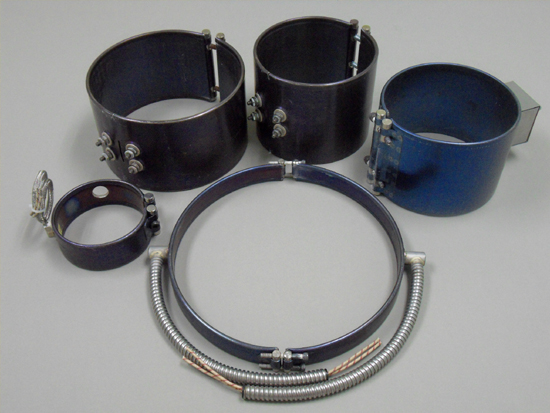

Mica / Mi-Plus® Band heaters

Used of mica insulation and metal shealth material construction. Watt density up to 35W/in². Operating temperature up to 250ºC (or 600ºF). Optional of terminal lead and clamp is available. Dimension size is made from application requirement.

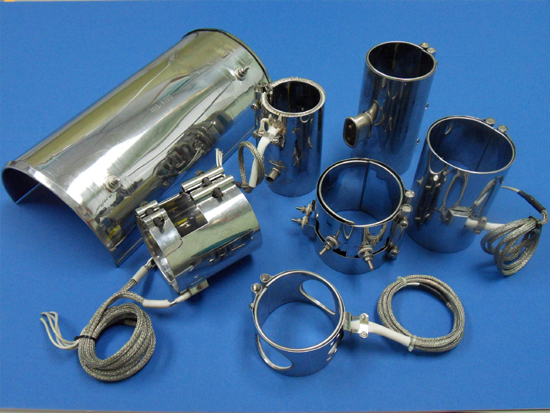

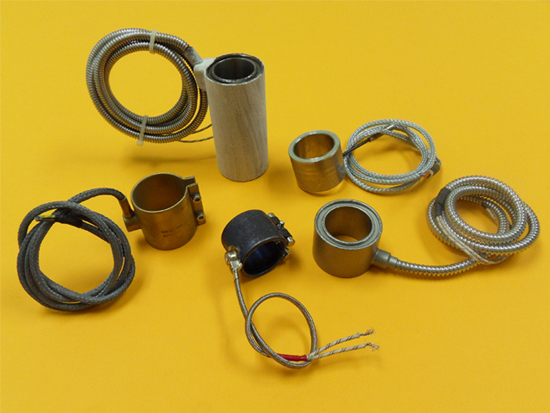

The Mi-Plus® band heater is used for the applications that require high watt density(W/in²) and/or high temperatures. Temperature up  to 760ºC (1400ºF). The nozzle band heater is made with watt density up to 150W/in² and barrel band heater up to 80W/in².
