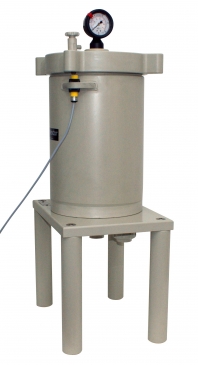

F7–T

Filter Chambers

Typical applications
• Plating, etching, solar and process industry

Features
• Compact and robust, service friendly
• No metal parts, all PP construction
• Threaded cover  for fast and easy opening
• Welded bottom (no seal)
• Max. temperature PP 80ËšC

Large choice of filtermedia
• String wound filter cartridges (double or single
  open ended)
• Melt blown filter cartridges
• Carbon cartridge
• Pleated cartridges
• High flow pleated cartridge
• Discs with filterpaper/cloth
• Filterbag

Standard
• Union connection for rigid piping (PP or CPVC
  sockets)
• EPDM gasket
• 10" and 20" chambers
• Manometer
• Air release
• PP cover maximum pressure 3,5 bar
• PP reinforced cover (black) max 5,5 bar

Options
• Hose connections, flanges
• Viton gasket
• 30" chamber
• Customized mounting plate in-tank or floor
  mounting (4 PP legs 300 mm)
• Safety switch on threaded cover
• Contact manometer
