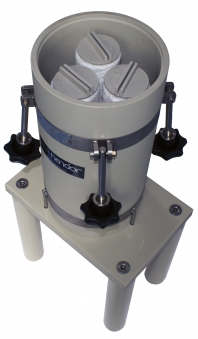

F31

Filter Chambers

3000 - 4000 L/H

Discs, cartridges, bag

Typical applications
• Plating and process industry

Features
• Compact and robust, service friendly
• Filter chamber with welded bottom (no seal)
• Discs (thin/thick paper, cloth), cartridges
  (max. Ø 70mm) or pleated bag
• All PP construction
• Top plate made of glass-filled PP
• Max. temperature PP 80ËšC
• External fasteners in SS316
• Unions for rigid piping (PP or CPVC sockets)

Options
• Hose connection
• (Contact) manometer
• Single open end cartridges
• Customised mounting plate
• Four PP legs (standard 300mm)
• External fasteners in titanium or electroless
  nickel coated
