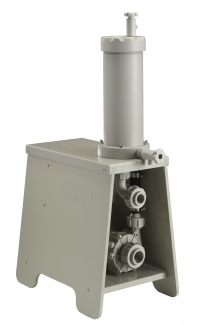

Series 1

Horizontal Filter Pumps

1000 - 3000 L/H

Cartridges

Typical applications
• Plating and process industry

Features
• Magnetic drive pump
• Filter chamber with welded bottom (no seal)

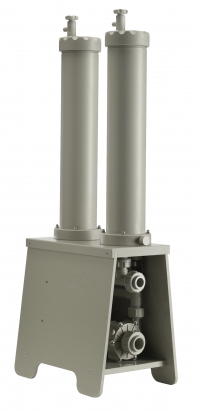

• One or two filter chambers (parallel or serial)
• String wound, spunbonded, pleated or carbon
  cartridge
• All PP or PVDF construction
• Max. temperature PP 80ËšC / PVDF 100ËšC
• Unions for rigid piping (PP, PVDF or CPVC sockets)
• Standard with 3 phase motor, thermal overload switch,
  lead without plug, air release and drain valve

Options
• Hose connection
• Pressure gauge
• Single phase motor
• Single open end cartridges

Downloads

Leaflet (english)
