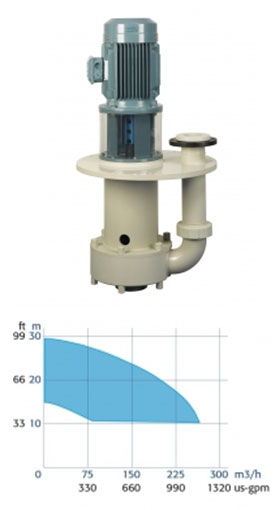

Series D400

Vertical Pumps

50000 - 250000 L/H

Suitable for
• Agressive low viscosity acids and alkalines

Typical applications
• Chemical, environmental and process industry

Features
• Long life, heavy duty construction
• No bearings
• Sealless
• Can run dry
• Viton O-rings
• Max. temperature 80ºC
• Discharge flange DIN2501 - PN10
• Threaded NPT connection for suction extension or
  strainer
• Electric motor ABB IEC IM B5, 4-P, IP55, 400/690V incl. 3
  PTC thermistors

Options
• EPDM O-rings
• Horizontal discharge pipe
• Suction extension pipe <1500mm
• Suction strainer
• Customized mounting plate
• Pump-tank gasket
• Motor drip cover
• Customized motor colour
• Special motorflange for American market

Downloads

Leaflet (english)
